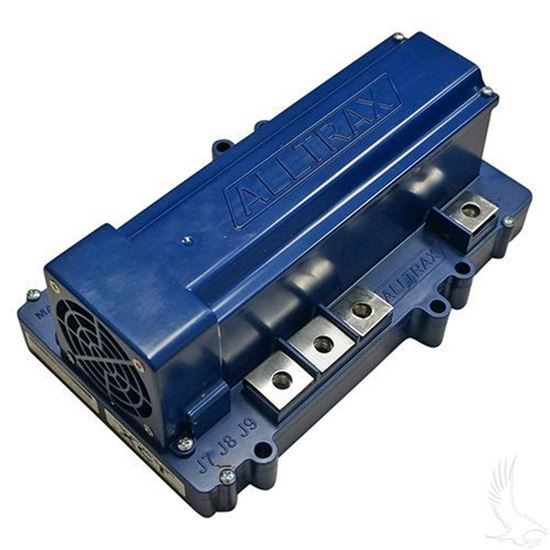

Alltrax SR-48500 Motor Controller - Fan, Fuse & Mounting Hardware Included. For Series and Permanent Magnet Motors.
Features:
- Color coded terminals
- 12-48 Volts
- 500 Amps Peak
- 575(Peak Amp Mode)
- Standard 4-spade
- Flexible USB programming
- Integrated heatsink mounts on any suitable surface
- Solenoid Control for Main DC Control
- Auto-throttle calibration for smooth operation
Specifications:
- DC motor controller for series and permanent magnet motors
- ABS + PC510 flame resistant thermal plastic enclosure
- All copper heat sinks
- Sealed epoxy UL-94-VO / 5VA flame rating (best in industry)
- Adjustable undervoltage cutback 8-30 VDC
- Adjustable overvoltage shutdown 30-60 VDC
- Operating Frequency: 18k Hz
- Voltage drop @ 100amps: <0.18V
- Control voltage KSI keyswitch and reverse: 36-48V Nom, 62 VDC Max
- Powered Up Standby Current <0.02A (20mA)
- Relay solenoid drive output current: 5amp peak, 1.0A Continuous
Throttle Input Options:
- ITS (inductive, EZGO)
- 0-1K Yamaha
- Resistive 0-5K ohm (+/-10%) 2-wire and 3-Wire
- Resistive 5K-0 ohm (+/-10%) Club Car
- 0-5Volt
- 6-10.5Volt (Taylor Dunn)
